SimPhoNy Plugin

AViz tools are available in the SimPhoNy library through the visualisation plug-in named aviz.

e.g:

from simphony.visualisation import aviz

Visualizing CUDS

The show() function is available to visualise the Particles CUDS dataset. The function will open a AViz and allow the user to view and analyze the particles.

The snapshot() create a snapshot of the Particles CUDS dataset. The function will create a PNG image of dataset.

Here is an example illustrating visualizing a particles dataset in Aviz as well as using the Aviz plugin to take a snapshot:

from simphony.visualisation import aviz
from simphony.cuds.particles import Particles, Particle
from simphony.core.cuba import CUBA

positions = [(1.0, 1.0, 1.0),
             (2.0, 2.0, 2.0),
             (1.5, 1.8, 1.9),
             (2.0, 1.0, 1.5)]
velocities = [(1.0, 1.0, 1.0),
              (2.0, 2.0, 2.0),
              (1.5, 1.8, 1.9),
              (2.0, 1.0, 1.5)]

mass = [1.0, 2.0, 10.0, 20]

# add particles
particles = [Particle(coordinates=positions[index],
                      data={CUBA.VELOCITY: velocities[index],
                            CUBA.MASS: mass[index]})
             for index, position in enumerate(positions)]

my_particles = Particles("test")
my_particles.add(particles)

aviz.show(my_particles)
aviz.snapshot(my_particles, "test.png")

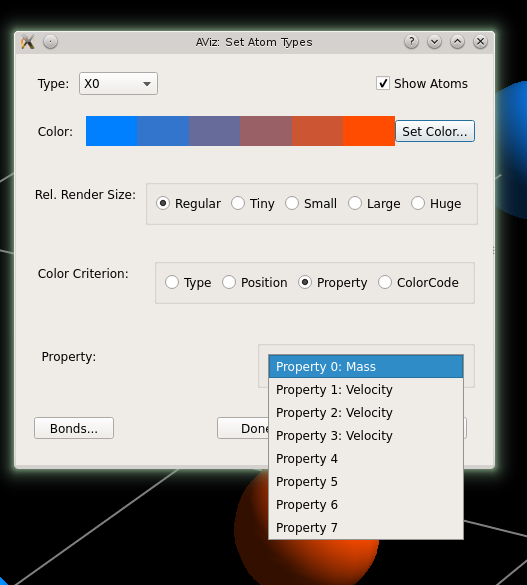

The different attributes of the particles can be selected in AViz:

CUBA Attributes

Aviz can show up to 8 properties. To determine which properties should be displayed, the individual particles of the dataset are queried. If there are more than 8 properties, then the first 8 which were encountered are used.

Aviz displays floating point values so all integer values are converted to floats when transferred to Aviz. Any attributes which have a type other than integer or float are ignored.

Note

Once simphony-aviz determines which attributes it will display, it assumes that each particle in the dataset contains those attributes.

Creating XYZ files

The simphony_aviz also provides a way to directly convert CUDS datasets to xyz input files for AViz:

from simphony.visualisation import aviz
from simphony.cuds.particles import Particles, Particle
from simphony.core.cuba import CUBA

positions = [(1.0, 1.0, 1.0),
             (2.0, 2.0, 2.0),
             (1.5, 1.8, 1.9),
             (2.0, 1.0, 1.5)]
velocities = [(1.0, 1.0, 1.0),
              (2.0, 2.0, 2.0),
              (1.5, 1.8, 1.9),
              (2.0, 1.0, 1.5)]

mass = [1.0, 2.0, 10.0, 20]

# add particles
particles = [Particle(coordinates=positions[index],
                      data={CUBA.VELOCITY: velocities[index],
                            CUBA.MASS: mass[index]})
             for index, position in enumerate(positions)]

my_particles = Particles("test")
my_particles.add_particles(particles)

aviz.create_xyz_file(my_particles, "test.xyz")
